Installing an HVAC scent diffuser is a straightforward process that most homeowners can complete in under 30 minutes without tools or a contractor. Every HVAC Scenting machine ships with everything needed for connection — a metal push-in fitting, a plastic scent tube, and aluminum tape for sealing the duct opening.
This guide covers the complete installation process from start to finish, including placement rules, tube angle, intensity setup, and the most common mistakes to avoid.
What you need before you start
- Your HVAC Scenting diffuser (HVAC10, HVAC30, or HVAC150)
- The included metal push-in fitting and plastic scent tube
- Aluminum foil tape (included or available at any hardware store)
- A drill with a small drill bit to create the duct entry hole (typically 3/8" to 1/2")
- Access to the air handler and main supply duct
- A 110V power outlet nearby
No HVAC knowledge is required. If you can reach your air handler and drill a small hole in sheet metal ductwork, you can complete this installation yourself. For any questions before you begin, HVAC Scenting offers a free consultation at (833) 777-7268.
Step-by-step installation
Step 1 — Confirm your HVAC fan is running
Before and during installation, your HVAC fan or air conditioning unit must be operating. The diffuser relies on active airflow through the ductwork to carry scent mist into your space. If the fan is off, the mist stays trapped inside the ducts rather than reaching the rooms — and prolonged operation without airflow can cause oil buildup in the ducts and potential damage to the diffuser or air handler.
Set your thermostat to fan-on mode if you want continuous scenting independent of heating or cooling cycles.
Step 2 — Choose the correct placement location

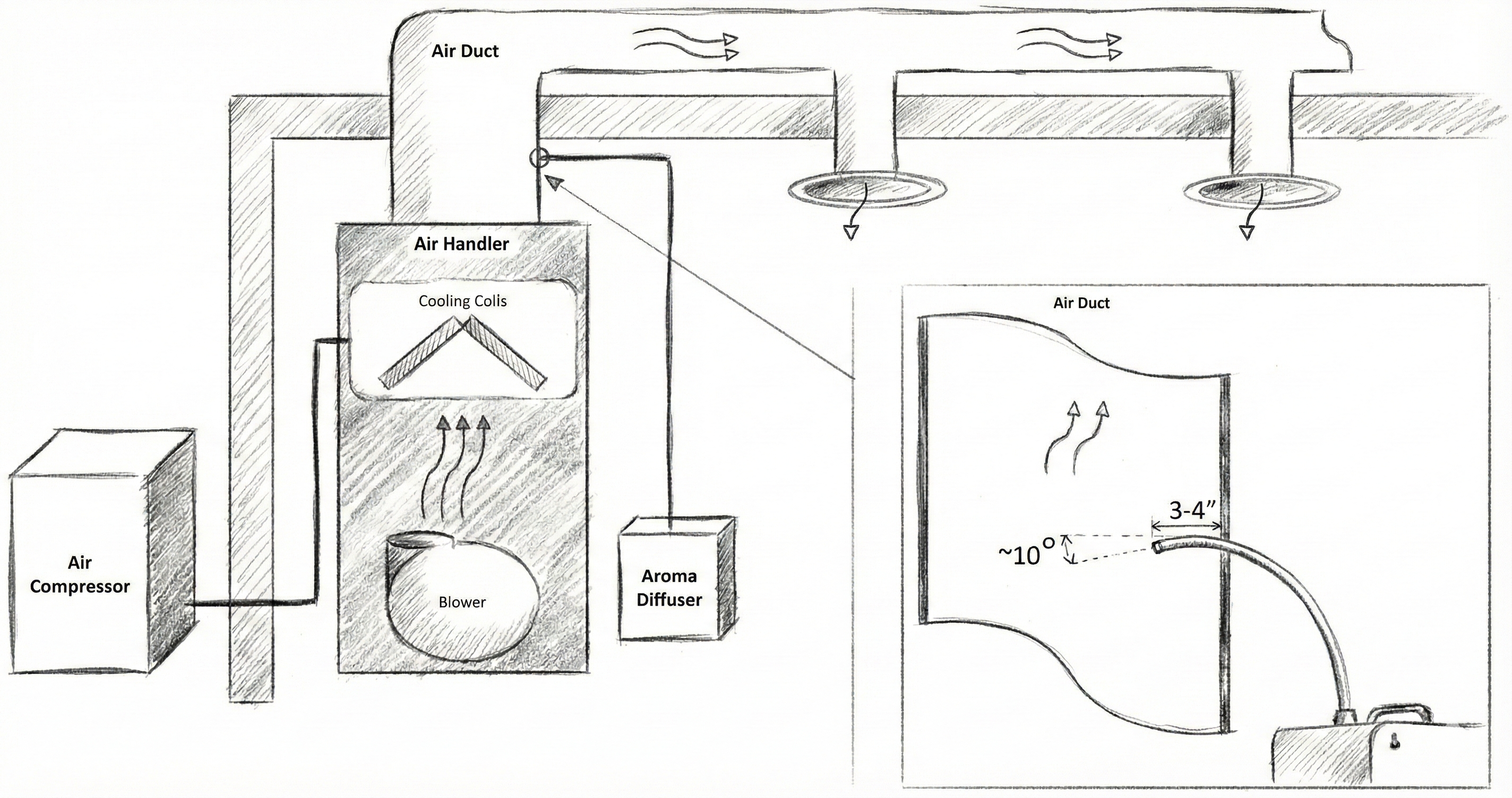

The ideal position for the diffuser tube entry is in the main supply duct, after the air handler and before the first air register. This placement ensures the fragrance mist enters the duct system at the point of highest consistent airflow and distributes evenly through every register in the zone.
Keep the diffuser machine itself close to the ductwork so the connecting tube can be kept short. The machine must be in a dry, clean, moisture-free environment near a 110V power outlet. Avoid placing it directly against the air handler body — leave adequate clearance.
Step 3 — Drill the duct entry hole
Using your drill, create a small entry hole in the sheet metal ductwork at your chosen location. The hole should be sized to fit the plastic scent tube snugly — typically 3/8" to 1/2" in diameter. Position the hole on the side or top of the duct, not the bottom, to prevent condensation from dripping into the tube.
Step 4 — Insert the scent tube
Thread the plastic scent tube from the diffuser into the duct entry hole. The tube opening inside the duct should sit approximately three to four inches inside the ductwork. Angle the tube at roughly a 10-degree downward pitch as it enters the duct — this slight downward angle helps the scent mist flow naturally with the airstream rather than pooling at the tube opening.
Keep the external portion of the tube as short as possible and route it as close to vertical as practical. Avoid any sagging or curved formations in the tube — low points in the tube collect oil over time, which can eventually damage the diffuser.
Step 5 — Attach the metal push-in fitting
Thread the included metal push-in fitting onto the machine end of the plastic tube and screw it securely into the diffuser output port. This fitting creates an airtight seal between the machine and the tube, preventing any mist from escaping before it reaches the ductwork.
Step 6 — Seal and secure the duct opening
Use aluminum foil tape to seal around the tube entry point in the ductwork. This prevents any air leakage around the hole and keeps the tube stable. Press the tape firmly to ensure a complete seal on all sides of the tube. Once sealed, secure the plastic tube to a fixed surface — the duct wall or a nearby bracket — using a cable tie or additional tape to minimize any tube movement during operation.
Step 7 — Set intensity and test
Plug the diffuser into the 110V outlet and power it on. HVAC installations require intensity levels set approximately 10 to 15% higher than standalone setups — the ductwork adds extra air volume that the mist must travel through before reaching the rooms, and some fragrance is absorbed by the extended duct path.
Start at medium-high intensity, let the system run for 15 to 20 minutes, and then walk through the rooms to check coverage. Adjust up or down using the app until you reach your preferred scent level in the furthest room from the air handler.
Common installation mistakes to avoid
| Mistake | Why it matters | How to avoid it |
|---|---|---|
| Running the diffuser with the fan off | Oil builds up in ducts and can damage the diffuser and air handler | Always confirm fan is running before operating |
| Sagging or looping tube | Low points collect oil, blocking mist flow and degrading the diffuser | Keep tube short and near-vertical at all times |
| Tube too far inside the duct | Reduces airflow capture and can create turbulence | Insert tube 3–4 inches only |
| Unsealed duct entry hole | Air leaks around the tube reduce diffusion efficiency | Seal completely with aluminum foil tape |
| Intensity set too low | HVAC setups lose some mist in the duct volume — rooms underscented | Start 10–15% higher than standalone baseline |
| Machine placed in a damp area | Moisture damages the nebulizing mechanism | Install only in dry, clean environments |
Standalone setup (no ductwork connection)
All HVAC Scenting machines can also operate as standalone units without connecting to ductwork. In standalone mode, place the diffuser in the room you want scented and point the output toward the center of the space. Coverage in standalone mode is more localized than HVAC-connected mode, but it is a practical option for rooms with no access to ductwork or for spaces with independent HVAC zones.
In standalone mode, intensity settings can be lower than the HVAC-connected baseline since the mist does not need to travel through ductwork.
After installation: optimizing your setup
- Use the app to set a schedule. Pair your diffuser with the HVAC Scenting app via Bluetooth to program run times by hour and day — so scenting aligns with when your space is occupied.
- Check the tube monthly. Inspect the plastic tube for any oil accumulation, sagging, or loosening at the duct seal. Reapply aluminum tape if any gaps appear.
- Refill before the bottle runs dry. Running the diffuser with an empty or near-empty bottle can strain the nebulizer. Check the oil level every 3 to 4 weeks and refill before the bottle drops below 10% capacity.
- Explore the full fragrance range. Browse the Hotel Collection and Designer Collection to find your signature scent, or start with the Hotel Collection Sample Pack before committing to a full bottle.
Frequently Asked Questions
Do I need a professional to install an HVAC scent diffuser?
No. Installation requires only a drill, the included fitting and tube, and aluminum tape. Most homeowners complete the process in under 30 minutes. If you have any questions, HVAC Scenting offers a free consultation by phone at (833) 777-7268.
Where exactly should I connect the diffuser tube in the ductwork?
Insert the tube into the main supply duct after the air handler and before the first air register. This is the point of highest and most consistent airflow in the system, which ensures even fragrance distribution across all connected rooms.
Why does HVAC installation need higher intensity than standalone?
The ductwork adds additional air volume between the machine and the rooms, and some fragrance mist is absorbed or dispersed along the duct path. Setting intensity 10 to 15% higher than a standalone baseline compensates for this distance and volume.
What happens if the HVAC fan turns off while the diffuser is running?
Fragrance mist will accumulate in the ductwork rather than reaching the rooms. Extended operation without airflow can cause oil buildup in ducts and potential damage to both the diffuser and the air handler. Always ensure the fan is set to continuous or confirm the AC is actively running before operating the diffuser.
Can I install the diffuser in a rental property or apartment?
Yes, with consideration. The installation requires drilling a small hole in the ductwork, which may require landlord permission in a rental. Alternatively, all HVAC Scenting machines work as standalone units without any ductwork connection, making them fully portable and installation-free for rental properties.
